Multi-cylinder logistics transportation
Our specialized three-wheeled vehicles for the logistics and supply chain sector come in two variants: a high-speed, heavy-load type primarily used for transporting heavy cargo and a high-speed, light-load type primarily used for transporting lighter cargo.
Do you need any help?
-

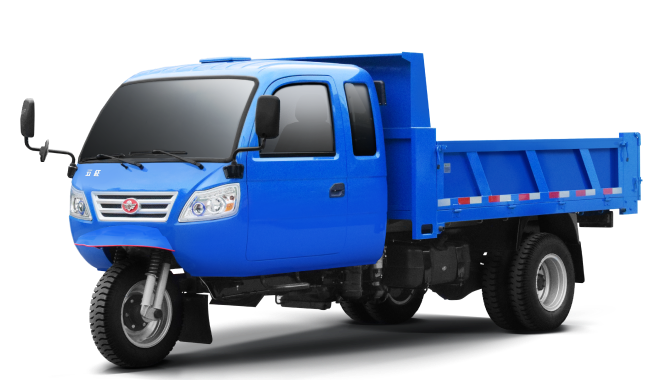

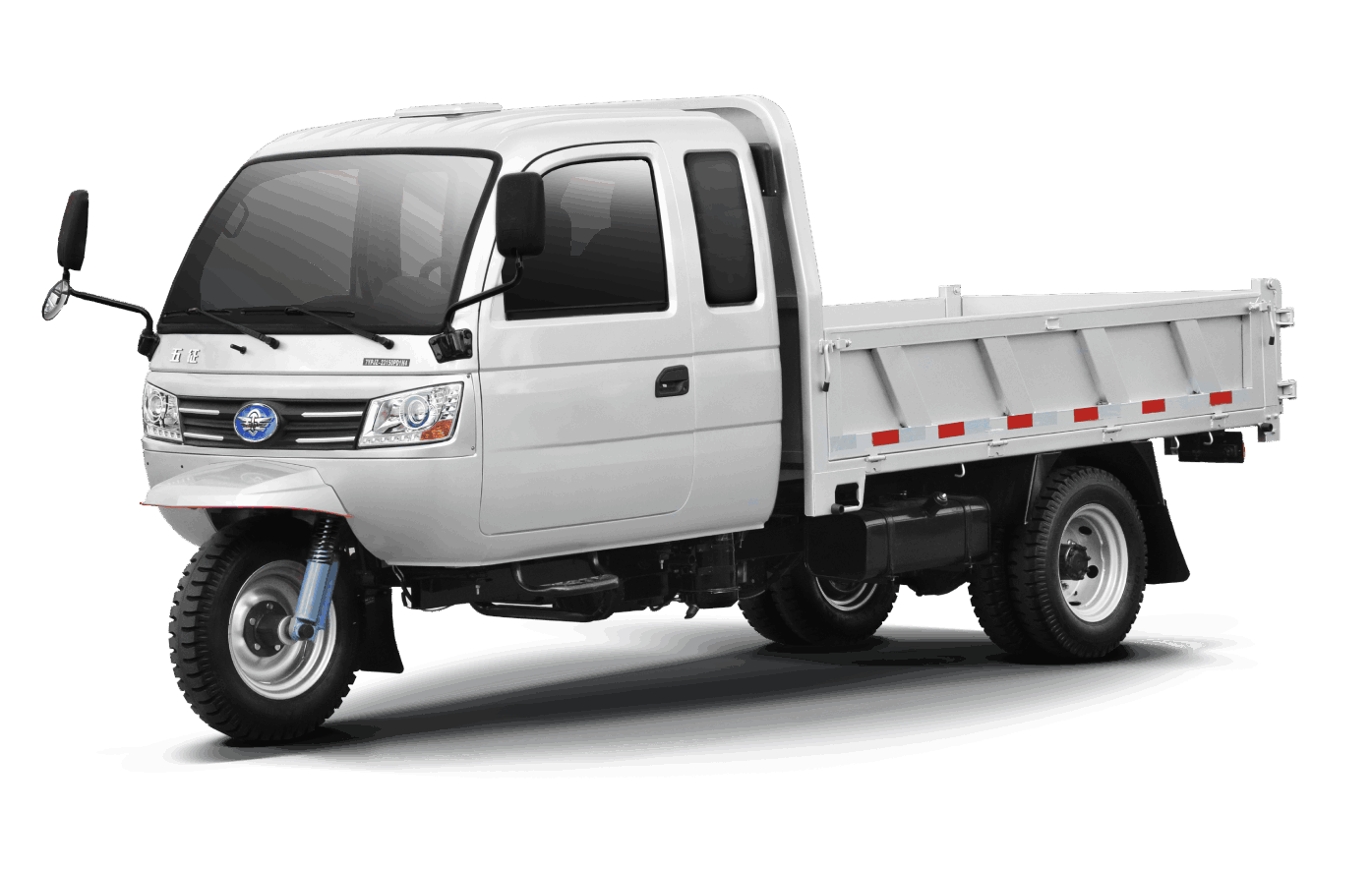

A1700
Multi-cylinder heavy-duty, powerful loading capacity, the preferred heavy-duty choice
-
Diesel enginePowerful Engine：
Inline four-cylinder diesel engine, power range of 22-46kW, with a stable and reliable drive system.
Strong Load Capacity：
510MPa high-strength steel frame, integrated truck drive axle, 90mm wide steel leaf springs, full-steel radial tires, supporting up to 8 tons loading.
Various Configurations：
Optional air brakes, air conditioning, back-up camera, remote door locks, and power windows.
High Speed：
Maximum speed of up to 90 km/h.
-
A1700
Efficient transportation solutions for users worldwide

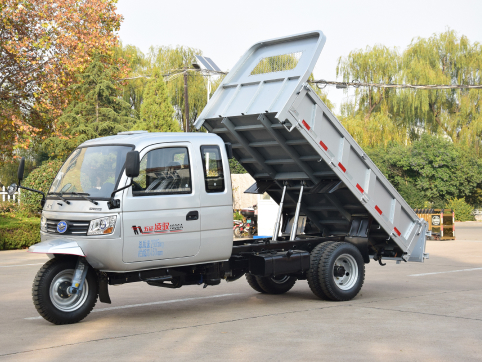

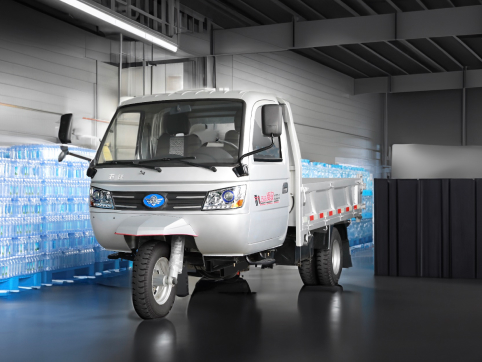

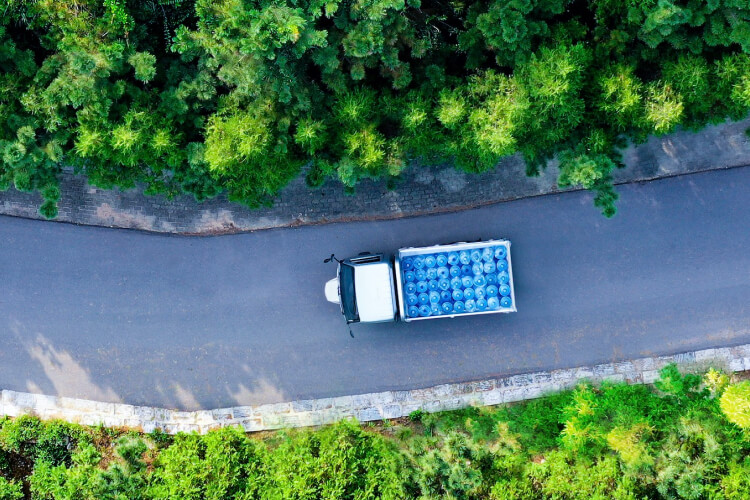

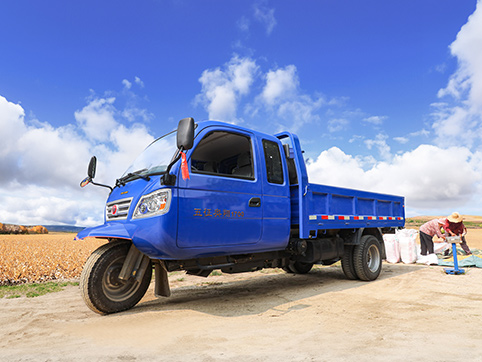

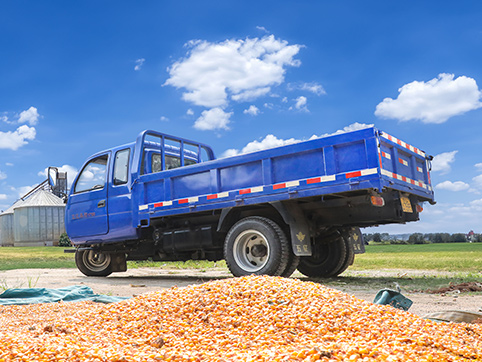

Use scenarios
Technical specification
-
A1600
-
A1700
-
Product model
-
Body
-
Engine model
-
External contour dimensions
-
Gearbox
-
Wheelbase
-
Front and rear tires
-
Frame form
-
Steering form
-
Shock absorber model
-
Box dimensions
-
Clutch
-
Brake form
-
Dumping method
-
Other configurations
-
-
WKA3B311
-
Aoxiang 1600 one-and-half row version A
-
480/485
-
5030/5180×1600×2050
-
12 gears
-
3410/3480
-
Front 60014, Rear 60016
-
160 channel steel non-external span frame
-
Recirculating ball steering gear/electric power steering gear
-
5658 dual shocks
-
2900/3050×1600×400/450
-
Mechanical clutch
-
Vacuum power brake/dual-module vacuum power brake
-
Hand-controlled hydraulic lifting and lowering
-
Optional electric power steering gear; center door lock; reverse camera; electric fan and other configurations.
-
-
-
WKA5J313
-
Aoxiang 1700 luxury one-and-half row
-
485/490
-
5180/5190×1800×2100
-
12 gears
-
3470/3540
-
Front 60014, Rear 60016
-
170 high-strength steel non-external span frame
-
Recirculating ball steering gear/electric power steering gear
-
6058 triple shocks
-
3050×1800×450
3050/3200×1800×500 -
Hydraulic clutch
-
Air brake
-
Hand-controlled hydraulic lifting and lowering
-
Optional electric power steering gear; optional electromagnetic drip; electric fan; no navigation but with reverse camera; air cut-off brake; dryer
-
Expand All
Collapse
Related products
-
Engineering Logistics TransportationThis model pairs a single-cylinder engine with a semi-enclosed body, and is primarily for commercial operation. The low-speed heavy-duty type is mainly used for carrying wood, plates, grain, etc. The low-speed light-duty type is mainly used for transporting fruits and vegetables. Included: Semi-enclosed and fully-enclosed models have a trunk length of 2.5 meters and longer (including awning, simple shed and full-shed vehicles).
Read more
-

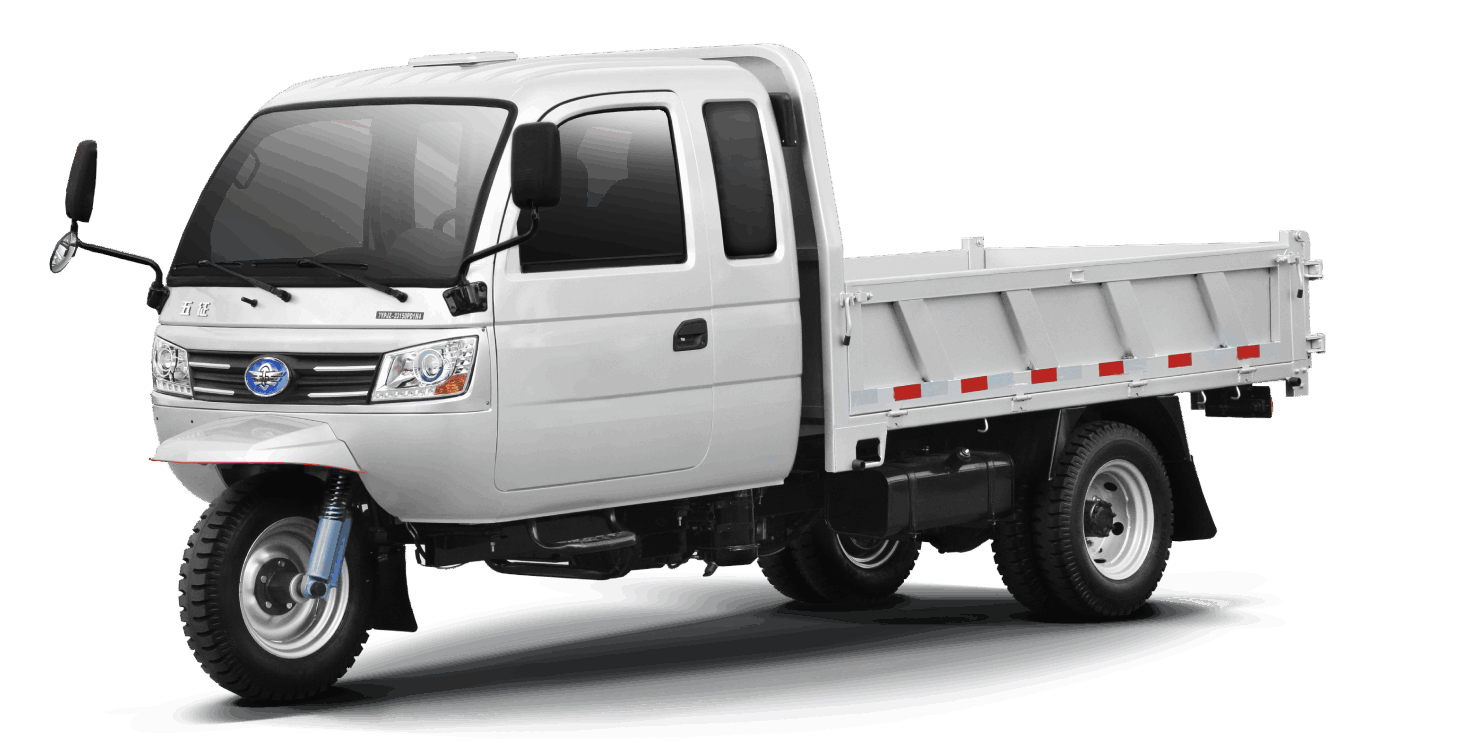

Multi-cylinder logistics transportationThis model pairs a multiple-cylinder engine with a fully enclosed body, and is primarily used for commercial operation. The high-speed heavy-duty type is mainly used for carrying wood, plates, grain, etc. The high-speed light-duty type is mainly used for carrying/transporting fruits, vegetables, tobacco, alcohol and foodstuffs. Included: Aoxiang, Lingyu multi-cylinder series products.
Read more
-

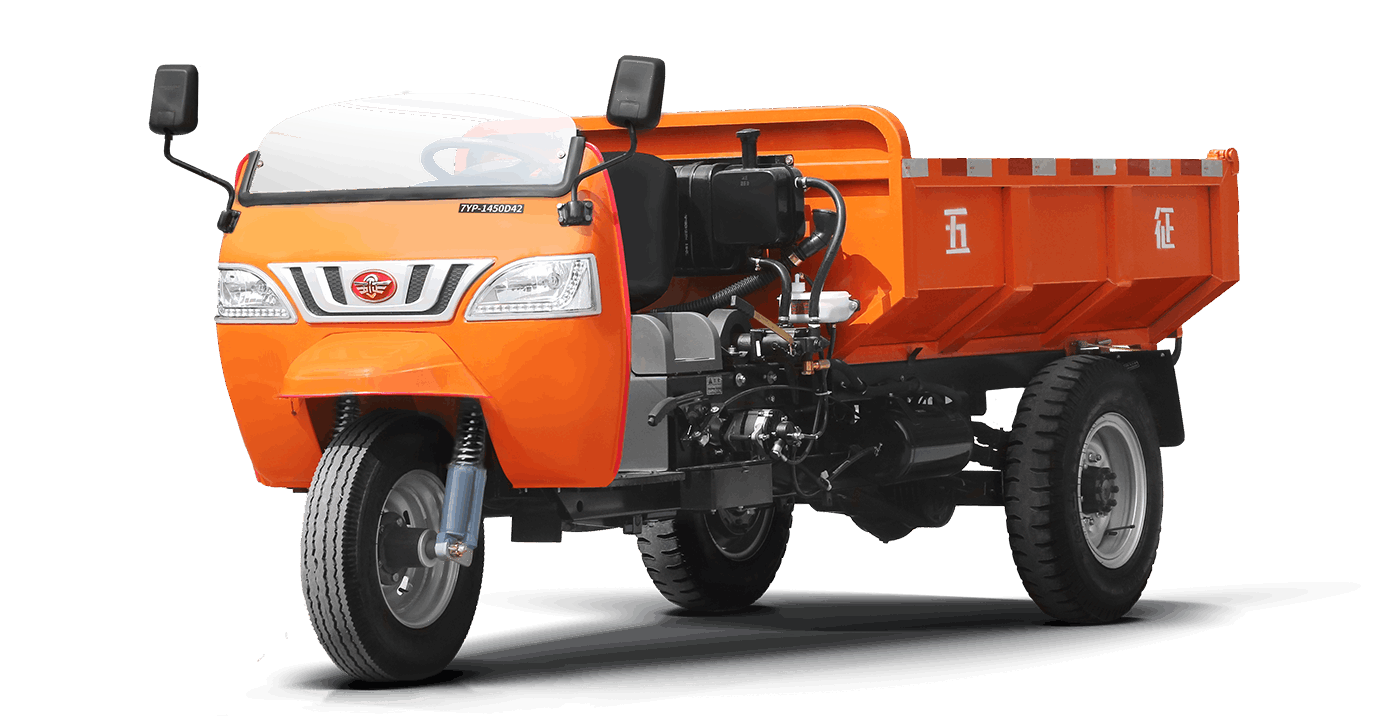

Mining and heavy equipment industryIt is mainly intended for rural construction sites and mining operations, and generally not used for road transportation. Included: All industrial and mining series models, as well as the new Aoxiang 1200 series products.
